commutative diagram

Mathematics

A commutative diagram is an arrangement of sets and functions such that any two paths from one given set to another give equal functions. A simple example is

$\begin{matrix} A & \overset{α}{\to} & B \\ \begin{matrix} f & ↓ \end{matrix} & \begin{matrix} ↓ & g \end{matrix} \\ X & \overset{β}{\to} & Y \end{matrix}$

where the commutativity of the diagram means $β \circ f = g \circ α$ , as both these compositions arise from paths from A to Y

Computer

A method for displaying equations between functions. For example, suppose that there is a function ϕ‎ of the form
$ϕ : X \to Y$
and what is needed is to represent or code the data in X and Y, and the function, by means of the data sets A and B, respectively. Functions α‎ and β‎ are chosen where
$α : A \to X and β : B \to Y$
and a function f : A → B is defined to be a representation or function for ϕ‎ on the code sets A and B if, for all a ∈ A, the following equation holds:
$ϕ α (a) = β f (a)$

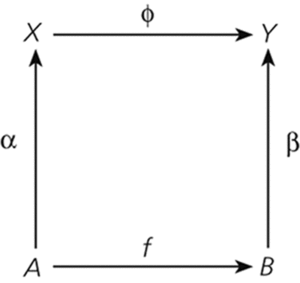

This equation is depicted by the commutative diagram shown in the figure.
Equations and commutative diagrams of this form play an important role in relating different levels of abstraction, and are used to formulate the correctness of data-type implementations, compilers, and machine architectures. As equations grow in complexity, commutative diagrams become essential. See also computable algebra.
Commutative diagram.
