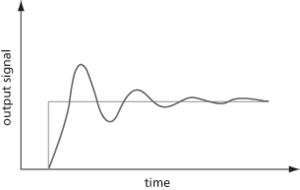

The ratio of successive peaks or troughs of the signal in an under-damped controlled system above or below the final steady-state value equal to 4:1 (see Fig.48). That is, the peaks are progressively smaller and equal to one quarter of the height or depth of the previous peak or trough. This corresponds to an optimal control of a process. See decay ratio.

Fig. 48
